NEO-MPS500 SITRANS Pressure Transmitter
Pressure measurement›Pressure Transmitters

NEO-MPS500 SITRANS Pressure Transmitter

The MPS500 is a versatile pressure transmitter designed to adapt to a wide range of applications and industries thanks to its flexible connection options and wide measuring range from 0-50 mbar to 0-1000 bar. Specially adapted for immersion applications, it offers a robust construction with 3x full scale overpressure capability and a temperature range from -40 °C to +125 °C. With standard ≤ 0.5 % or optional 0.2 % accuracy and multiple outputs (4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC), it integrates into all automation systems. Featuring zero and full scale adjustment, optional MODBUS communication, and electrical connections DIN 43650 A, M12, or connected cable, the NEO-MPS500 offers maximum flexibility for the water, oil and gas, chemical, and mechanical engineering industries.

Technical Details

ConnectionImmersion specified
Measurement Range0...50m Bar-0...1000 Bar
Output4...20mA,0-10VDC, 0-5 VDC, 1-5 VDC
Pressure<= 0,5 % T.S Ops.0,2
Supply10 VDC ... 32VDC
Temperature-40...+125 °C
Maximum Pressure3x max. Scale
ProtectionIP65,IP67,IP68
Zero-SpanAvailable
CommunicationOps;MODBUS
Electrical ConnectionDIN 43650 A, M12 Pin Connector, Cable Connected
Get Product
Download CatalogContact Expert

Our expert team is ready to guide you in selecting the perfect measurement instruments for your applications.

For more information about this product, download the catalog.

Explore More

We suggest other products that may also be helpful to you

NEO-P200 SITRANS Pressure Transmitter
Pressure Transmitters
Pressure measurement

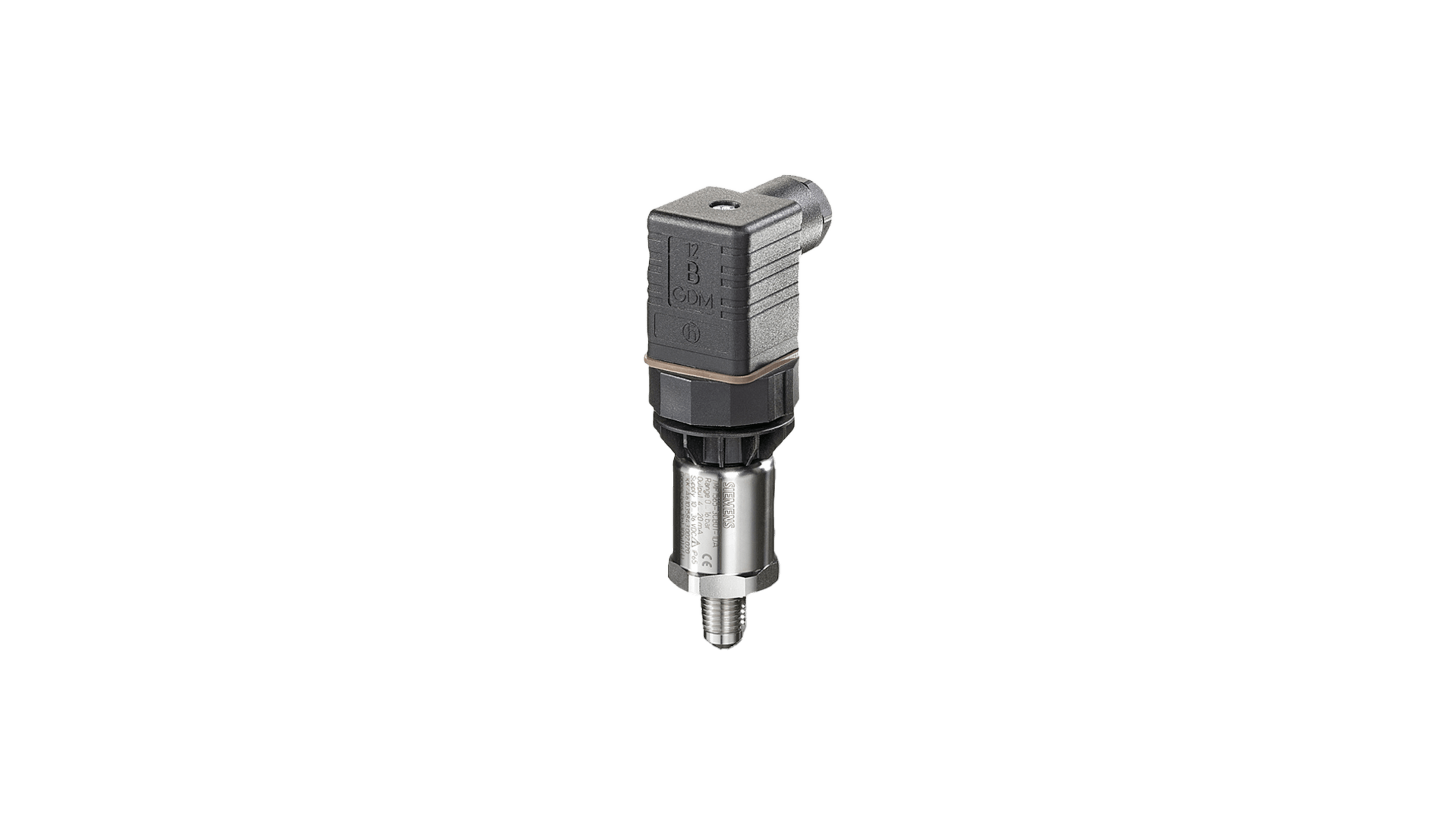

NEO-P200 SITRANS Pressure Transmitter

The Sitrans P200 is a compact pressure transmitter designed for the precise measurement of absolute and gauge pressure in industrial and sanitary applications. Featuring a robust ceramic sensor, it guarantees excellent performance and long-term stability, even in demanding environments. Ideal for integration into pipelines or tanks, the P200 converts pressure into a standard 4-20 mA signal for direct monitoring by a PLC. It is perfectly suited for the chemical, petrochemical, water treatment, and hygienic process industries requiring reliability and a compact design.

View Details
NEO-P220 SITRANS Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-P220 SITRANS Pressure Transmitter

The Sitrans P220 is a pressure transmitter designed for reliable gauge and absolute pressure measurement of liquids, gases, and vapors in general industrial applications. Equipped with a robust ceramic measuring cell, it offers excellent resistance to overpressure and harsh environments. With measuring ranges from 1 to 60 bar for gauge pressure and 0.6 to 16 bar for absolute pressure, it covers a wide range of common applications. Its ≤ 0.25 % nonlinearity and ≤ 0.25 % long-term stability over 12 months ensure accurate and reliable measurements over time. Ideal for the chemical industries, water treatment, mechanical engineering, and all industrial applications requiring a robust and cost-effective transmitter.

View Details
NEO-P300 SITRANS Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-P300 SITRANS Pressure Transmitter

The Sitrans P300 is a high-performance pressure transmitter combining exceptional measuring accuracy with rugged durability. With ≤ 0.075 % accuracy and ≤ 0.25 % long-term stability over 60 months, it guarantees reliable and repeatable measurements over time. Its stainless steel housing and wide range of hygienic process connections make it ideal for sensitive applications in the food, beverage, and pharmaceutical industries. Covering measuring ranges from 0-10 mbar to 0-400 bar, the Sitrans P300 suits both low and high pressures, offering a versatile solution for all your pressure measurement needs in demanding environments.

View Details
NEO-P500 SITRANS Digital Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-P500 SITRANS Digital Pressure Transmitter

The Sitrans P500 is a high-performance digital pressure transmitter designed to meet the most stringent demands for accuracy, long-term stability, and measurement speed. Versatile and user-friendly, it can be configured to measure not only differential pressure but also level, volume, mass, and volumetric flow in tanks and pipelines. With measuring ranges from 2.5 to 1000 bar (36 to 14 500 psi) and a 4-20 mA output with configurable low threshold, it offers exceptional flexibility for the most complex applications. Ideal for the petrochemical industries, refining, power generation, and large industrial processes requiring multivariable measurements and high precision.
