NEO-TS100 SITRANS Temperature Sensor
Temperature measurement›Temperature Sensors

NEO-TS100 SITRANS Temperature Sensor

The TS100 is a mineral-insulated cable (MIC) temperature sensor from Neodyn, designed for a wide range of industrial applications. Thanks to compression fittings or soldering nipples, it can be installed easily and flexibly, even in Zone 0 hazardous areas, without requiring an additional thermowell. Ideal for demanding environments, the TS100 offers operating temperatures from -196 °C to +600 °C for extended Pt100 and up to +1250 °C for thermocouple types. Certified with ATEX, IECEx, cCSAus, EAC, and NEPSI, it guarantees absolute reliability in hazardous zones.

Technical Details

OutputSensor signal
Max. operation temperaturePt 100 Basic: -50 ... +400 °C (-58 ... +752 °F), Pt 100 Extended: -196 ... +600 °C (-320.8 ... +1112 °F)
- measuring pointThermo couple -40 ... +1250 °C (-40 ... 2282 °F) Depending on type
-cable end-40° ... +80 °C (-40 ... +176 °F)
Ingress protectionIP66 (between sensor and cable)
ApprovalsATEX, IECEx, cCSAus, EAC, NEPSI
Get Product
Download CatalogContact Expert

Our expert team is ready to guide you in selecting the perfect measurement instruments for your applications.

For more information about this product, download the catalog.

Explore More

We suggest other products that may also be helpful to you

NEO-TS300 SITRANS Temperature Sensor
Temperature Sensors
Temperature measurement

NEO-TS300 SITRANS Temperature Sensor

The TS300 is a temperature sensor from Neodyn specifically designed for hygienic applications in the food, beverage, pharmaceutical, and biotechnology industries. Its clamp-on technology is especially beneficial for small pipe diameters: it requires no welding or validation, does not interfere with the process, maintains piggability, allows easy disassembly for recalibration, and offers measurement accuracy comparable to built-in sensors. With outputs available in direct sensor signal, 4-20 mA, HART, PA, or FF, and IP65 protection, the TS300 is the ideal solution for demanding hygienic environments.

View Details
NEO-TS500 SITRANS Temperature Sensor
Temperature Sensors
Temperature measurement

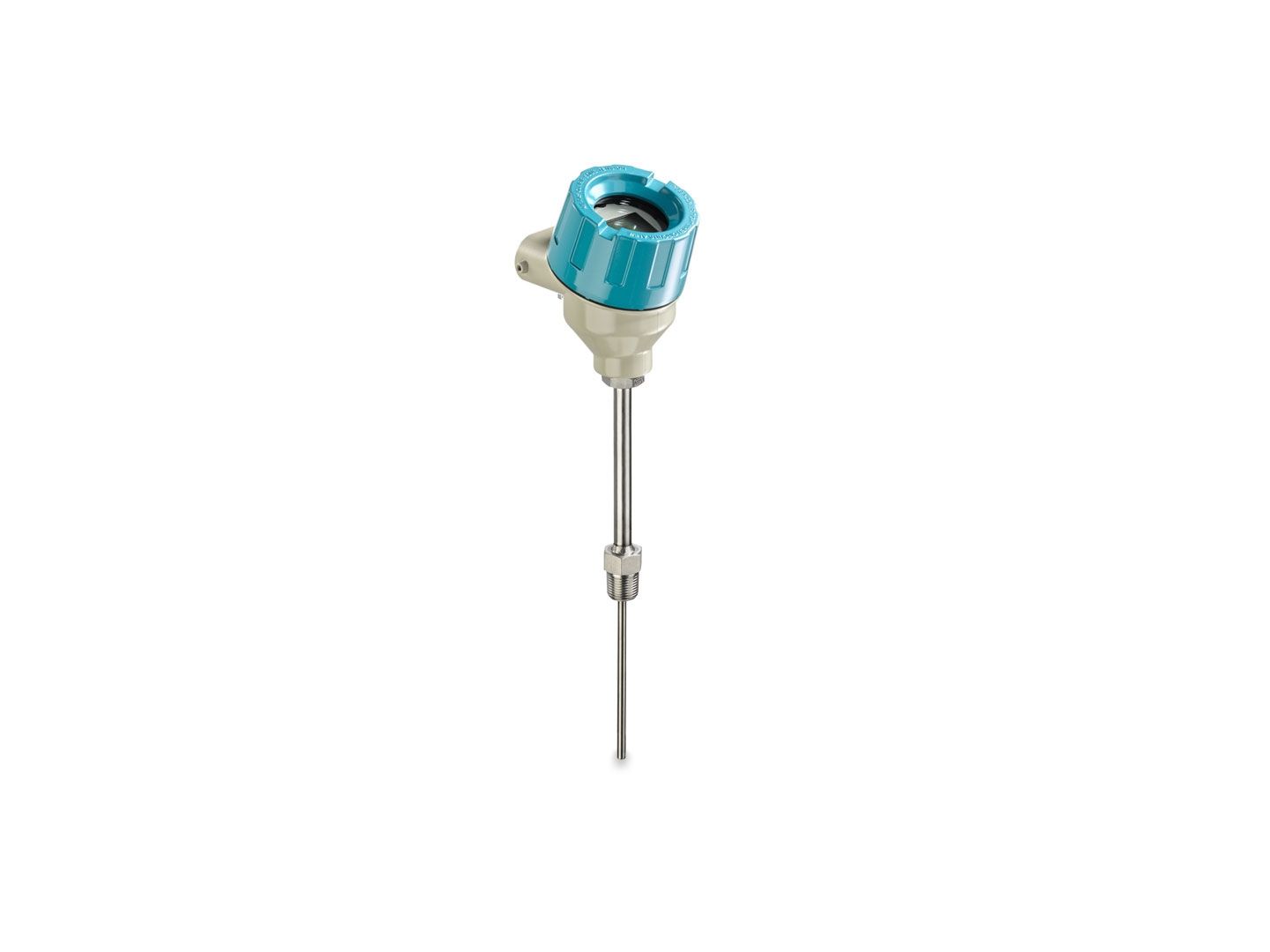

NEO-TS500 SITRANS Temperature Sensor

The TS500 is a modular temperature sensor from Neodyn covering a wide range of applications, from simple to complex, including harsh and hazardous environments. Its modular design—with protective tubes (tubular or solid), extensions, connection heads, optional transmitters or displays—allows the use of standard components for customized solutions. Intrinsically safe and flameproof versions are also available for hazardous areas. With outputs including HART, PA, FF, and temperature ranges from -186 °C to +1250 °C depending on configuration, the TS500 offers maximum flexibility for all industries.

View Details
NEO-TS Insert SITRANS Temperature Sensor
Temperature Sensors
Temperature measurement

NEO-TS Insert SITRANS Temperature Sensor

The TS Insert is a temperature measuring component from Neodyn that serves either as a spare part for the TS500 or as a component for assembling complete custom temperature solutions. Available in European design—with ceramic terminal block and flying leads or mounted transmitter—or in American design, spring-loaded in the extension, it offers a wide range of possibilities for customized applications. With outputs in direct sensor signal, 4-20 mA, HART, PA, or FF, and temperature ranges from -196 °C to +1100 °C depending on sensor type, the TS Insert is the ideal solution for custom measurement applications.

View Details
NEO-TS thermowell SITRANS Temperature Sensor
Temperature Sensors
Temperature measurement

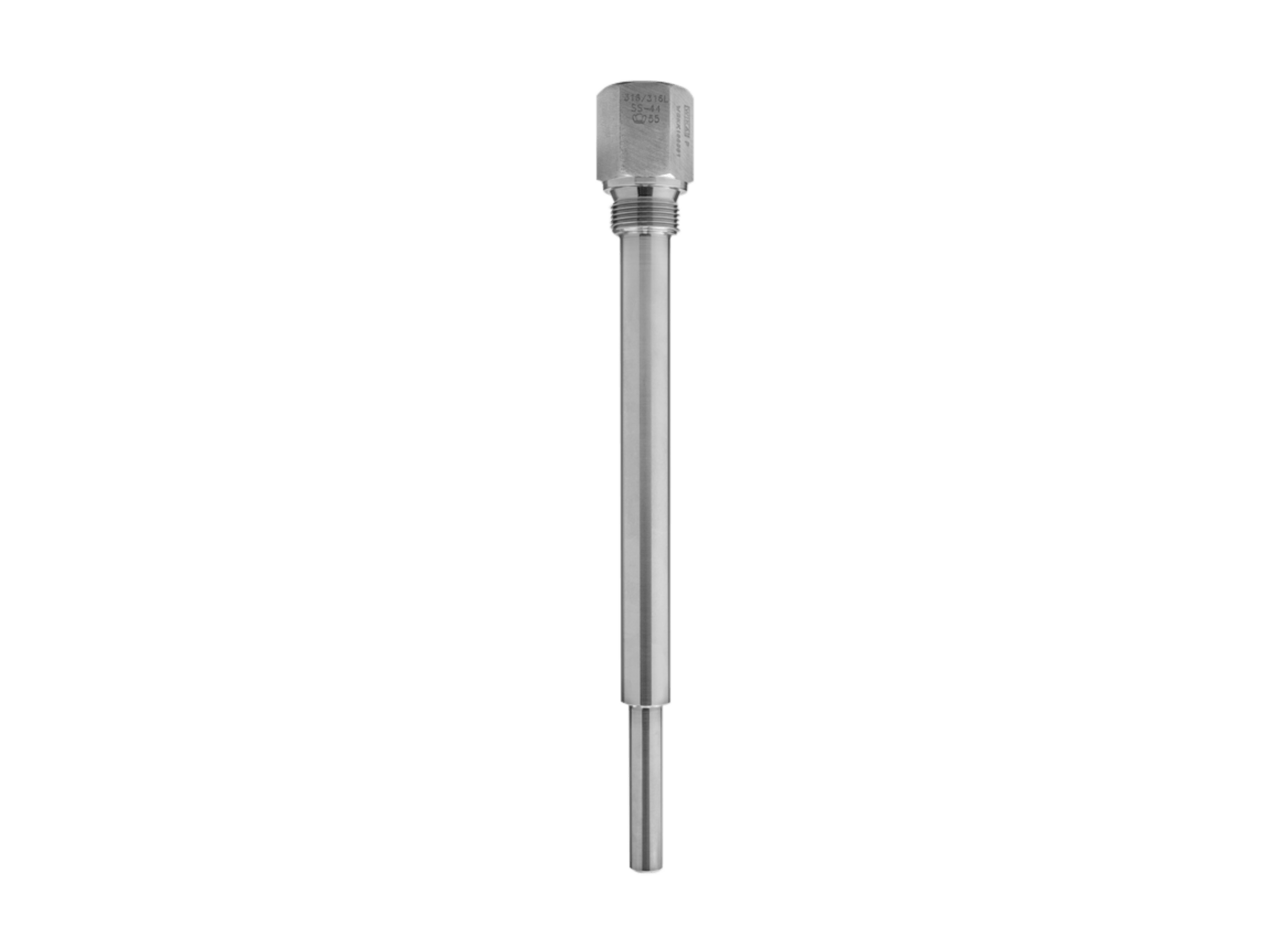

NEO-TS thermowell SITRANS Temperature Sensor
